Metal Fabrication in Leamington That Fits the First Time

Misaligned brackets, forced fits and field modifications slow down every installation. Custom Concepts Machining offers metal fabrication in Leamington, Ontario for manufacturers who need frames, guards, tanks and assemblies that are accurate, consistent and ready to install. We cut, form, weld and machine in one shop, so your fabricated parts arrive built to the drawing.

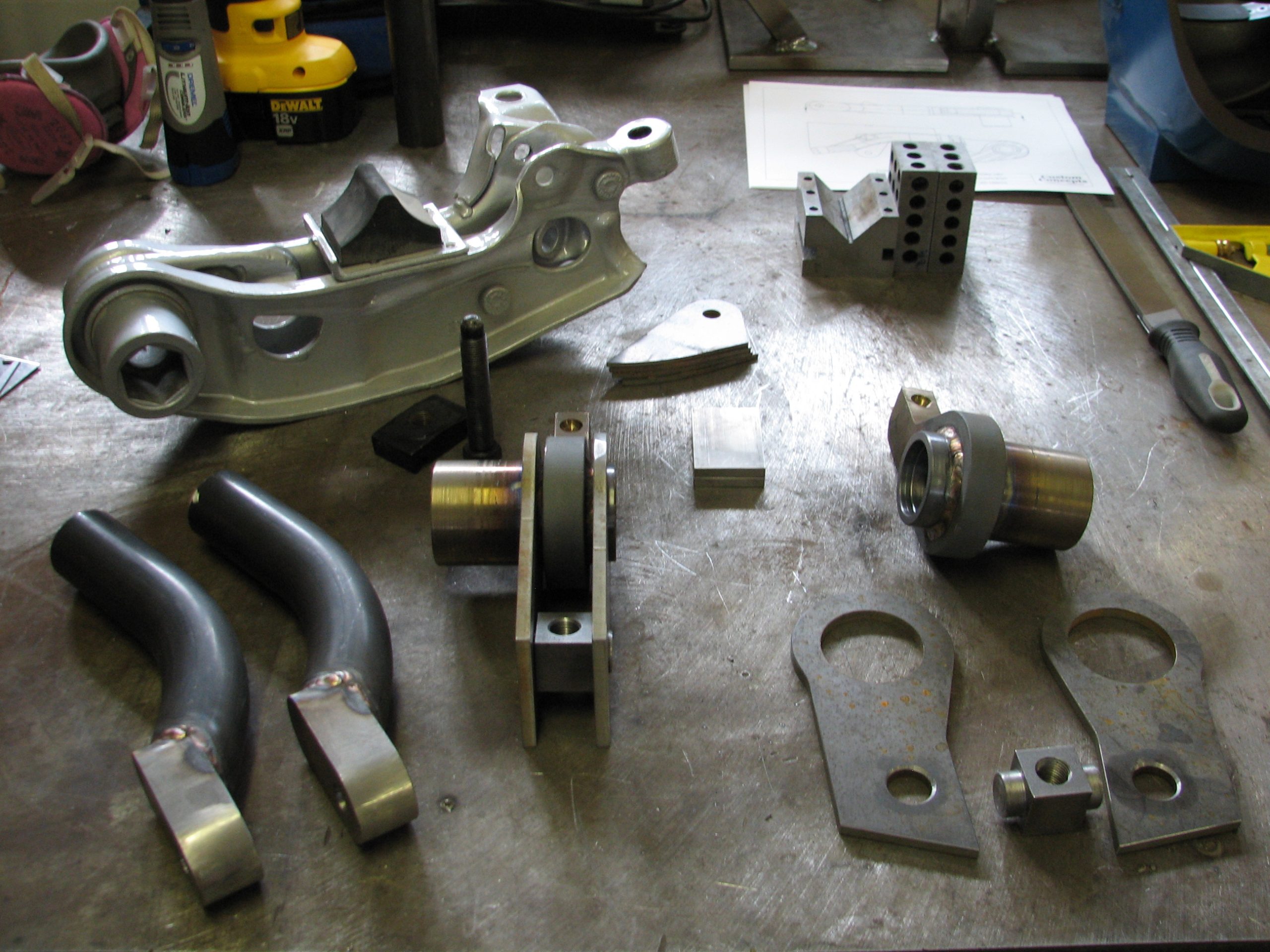

Fabricated and machined steel parts on a welding table, including an aluminum suspension arm

From Raw Material to Finished Assembly

Our fabrication work turns plate, tubing, castings and formed material into engineered parts. We combine cutting, forming, machining and welding under one roof and one set of drawings. That matters because most fabrication problems show up where one process hands off to the next. When the same team handles every step, the holes line up, the faces sit flat and the assembly bolts together.

We focus on light to medium fabrication for production equipment, machinery and plant upgrades. Steel and stainless steel cover most of our fabrication work, and every joint is welded by the same team that machines the finished features. See our welding services page for the MIG, TIG and arc processes we use.

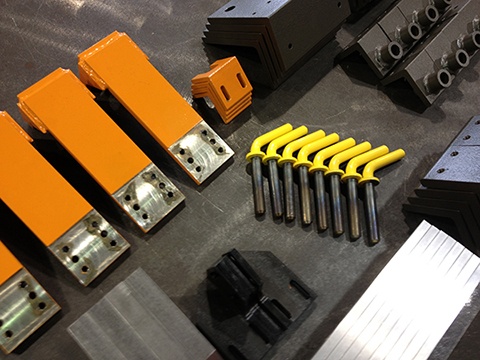

Orange fabricated blocks, yellow handle pins and black machined parts for automated machinery

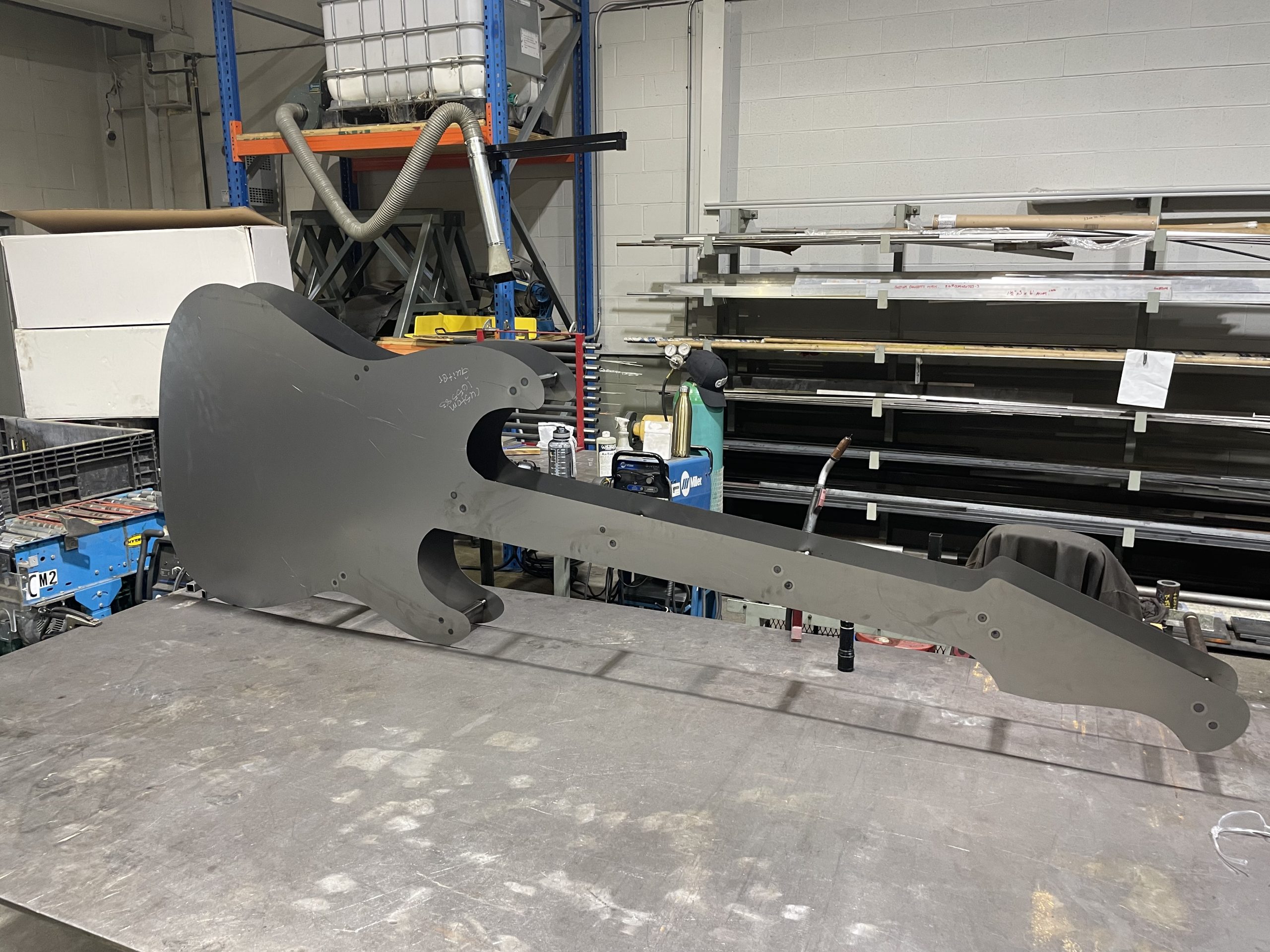

Large cut steel plate in a guitar shape on a table in our fabrication shop
Welded steel suspension arms and linkages on a welding table

See What we can do Start Your Project Our Work in Action

Our Fabrication Process

Every job follows three stages, with checks built into each one.

  1. Design and review. We check your drawing or concept for material, fit and function before cutting anything. If a design will be hard to build or install, we tell you up front. Our CAD design team can draw the part in SolidWorks if you only have a sketch.
  2. Fabrication. We cut, form, weld and machine the parts, checking accuracy at each stage, not just at the end.
  3. Final assembly and delivery. We check fit and function before the assembly leaves the shop, so your crew installs it without surprises.

Fabrication That Includes Machining

This is where we differ from a standard fab shop. Many fabricated parts need machined features: bored bearing seats, flat mounting pads or tapped holes in exact positions. A fab-only shop sends those parts out for machining, which adds time and another chance for error. We machine them in-house on our CNC mills and lathes, so tight features stay tight. See our custom machining service for more on our machining capability.

What We Fabricate

Recent metal fabrication jobs from our Leamington shop include:

  • Diesel fuel tanks
  • Shock towers
  • Filtration stands
  • Equipment railings and guard cages
  • Stainless steel tanks and manifolds
  • Equipment frames and machine bases
  • Components for automated machinery

Fabricated parts must fit larger systems, carry load and last in service. We build to your functional requirements, not just the outline on the page. Tell us the load, the environment and how the part mounts, and we will build it to suit.

Why Fit Problems Cost So Much

Installation is where fabrication mistakes get expensive. A frame that is a few millimetres off means slotting holes on site, adding shims or cutting and rewelding in the field. Crews stand around, start-up dates slip and the fix never looks right. We prevent this by building to the drawing, checking dimensions as we go and test fitting assemblies before delivery.

Who We Fabricate For

Our metal fabrication customers include greenhouse and agricultural operations, food processing and packaging plants, automation builders and general manufacturers across Windsor-Essex. Local customers in Leamington, Kingsville, Essex, Windsor and Chatham-Kent can visit the shop to review the job in person.

Frequently Asked Questions

What size of fabrication work do you handle?

We focus on light to medium fabrication, such as frames, stands, guards, tanks and machine assemblies. Call us with your dimensions, and we will confirm fit with our shop.

Can you fabricate from a sketch?

Yes. We can turn a sketch, photo or existing part into a SolidWorks drawing, then build from it.

What file types do you accept?

Our form accepts PDF, image, DXF, DWG, STEP, IGES, SolidWorks, STL and ZIP files up to 10 MB each. Send larger files by email.

Do you fabricate production quantities?

Yes. We build single assemblies and repeat runs. Fixtures and saved drawings keep repeat parts consistent.

Start Your Metal Fabrication Project

For metal fabrication in Leamington that installs without rework, send your drawing through the form on this page or call Custom Concepts Machining at (519) 325-0804. Our shop is at 4 Iroquois Road, Unit #5, Leamington, Ontario N8H 3V7.

Our Work

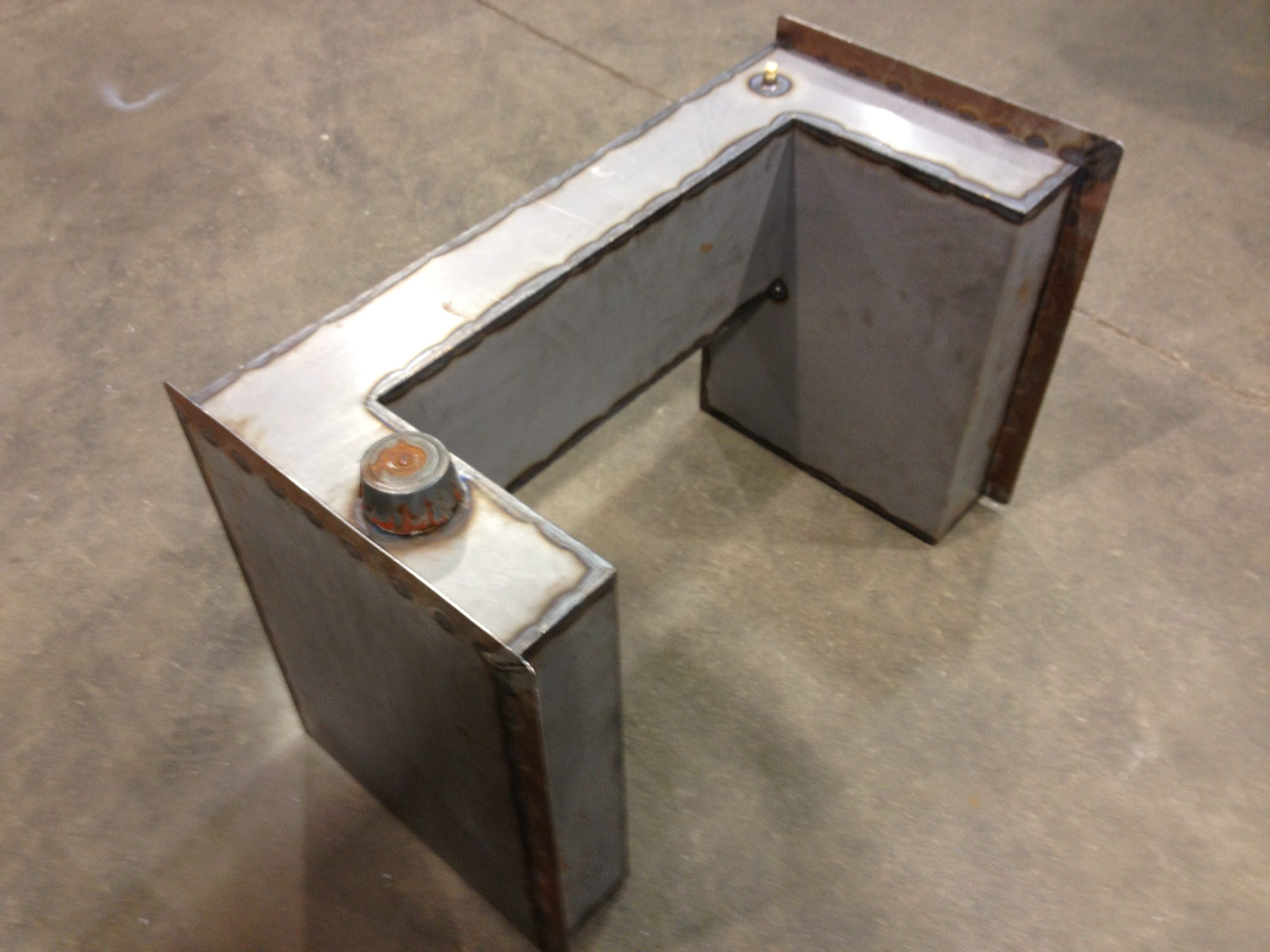

  • Custom welded L shaped steel diesel fuel tank

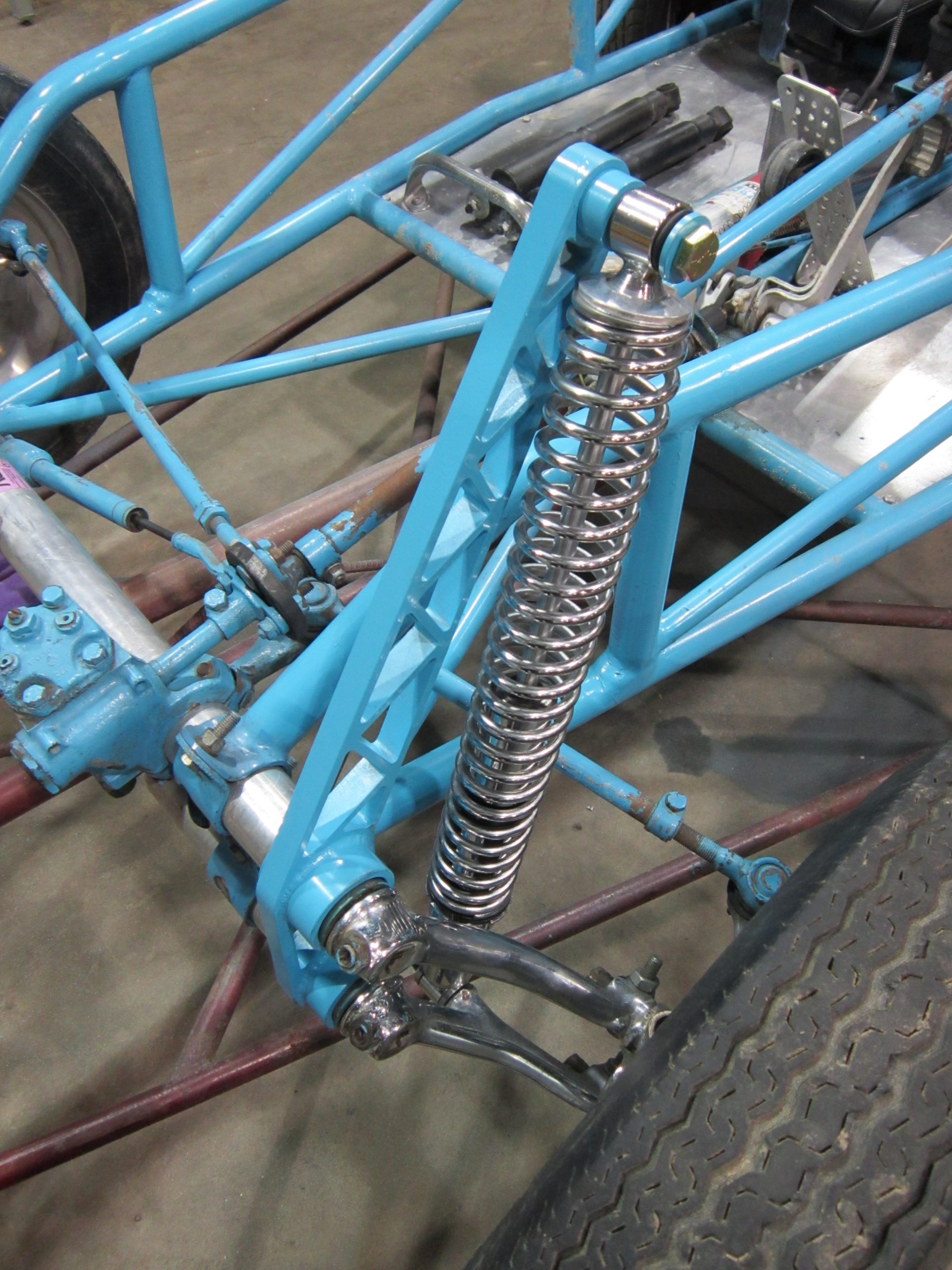

  • Custom shock towers with coil over shocks on a blue powder coated tube chassis
  • Cut sheet steel panel with slots on the shop floor before forming
  • Large cut steel guitar shaped plate on the fabrication shop floor

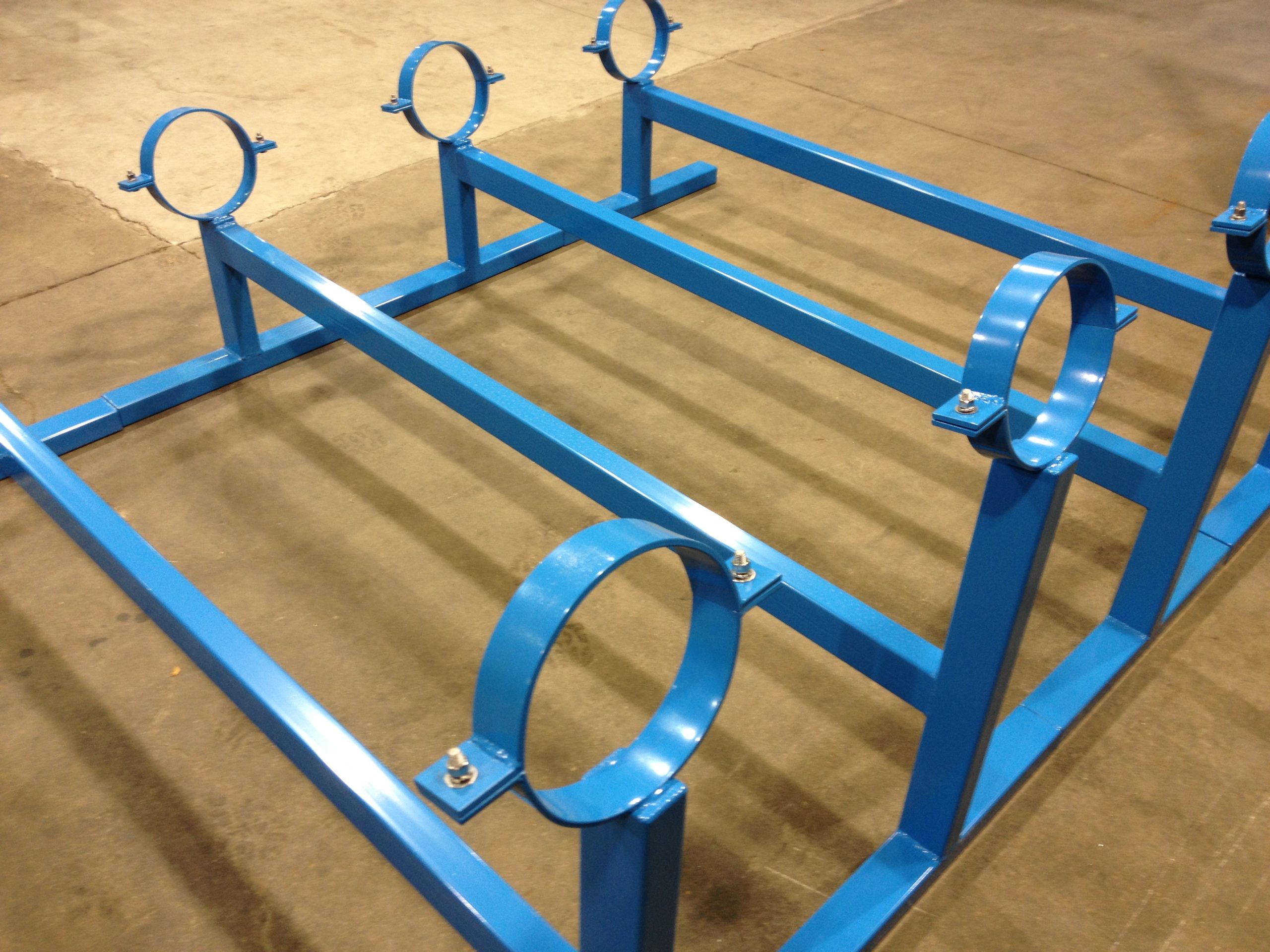

  • Blue powder coated welded filtration stands with ring clamps

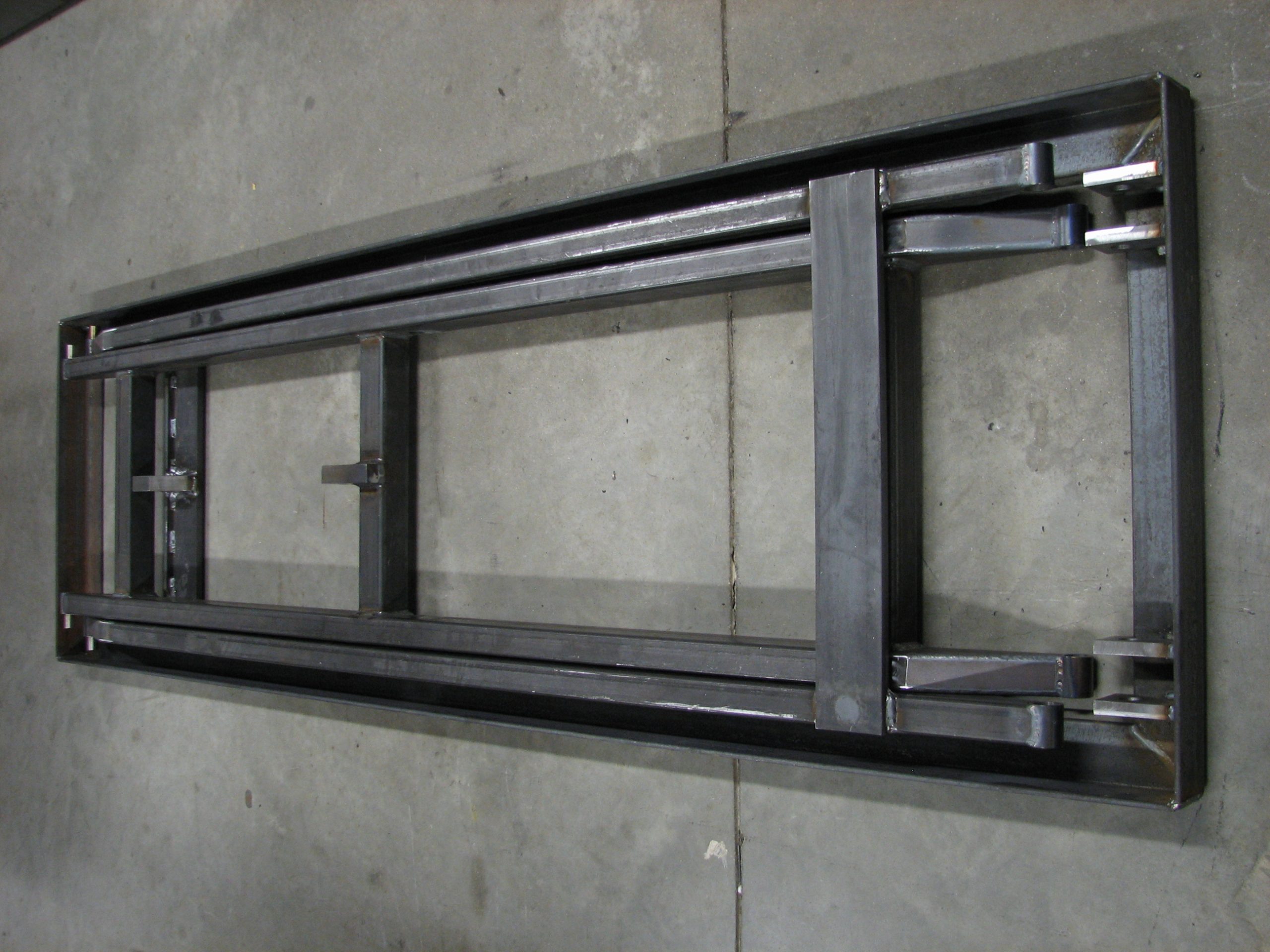

  • Welded black steel rectangular frame on the shop floor

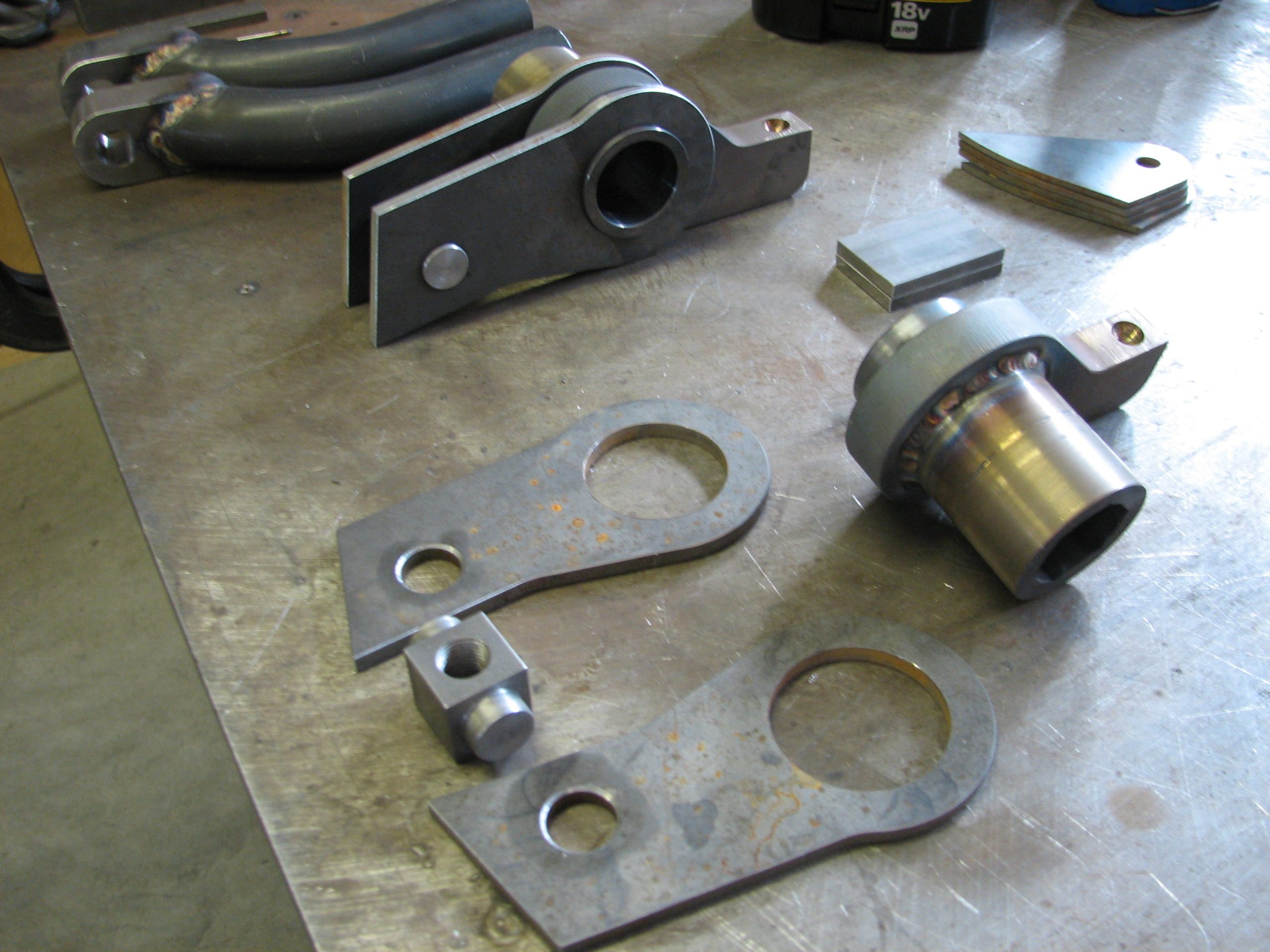

  • Cut steel plates and welded tab brackets with bushings on a fabrication table

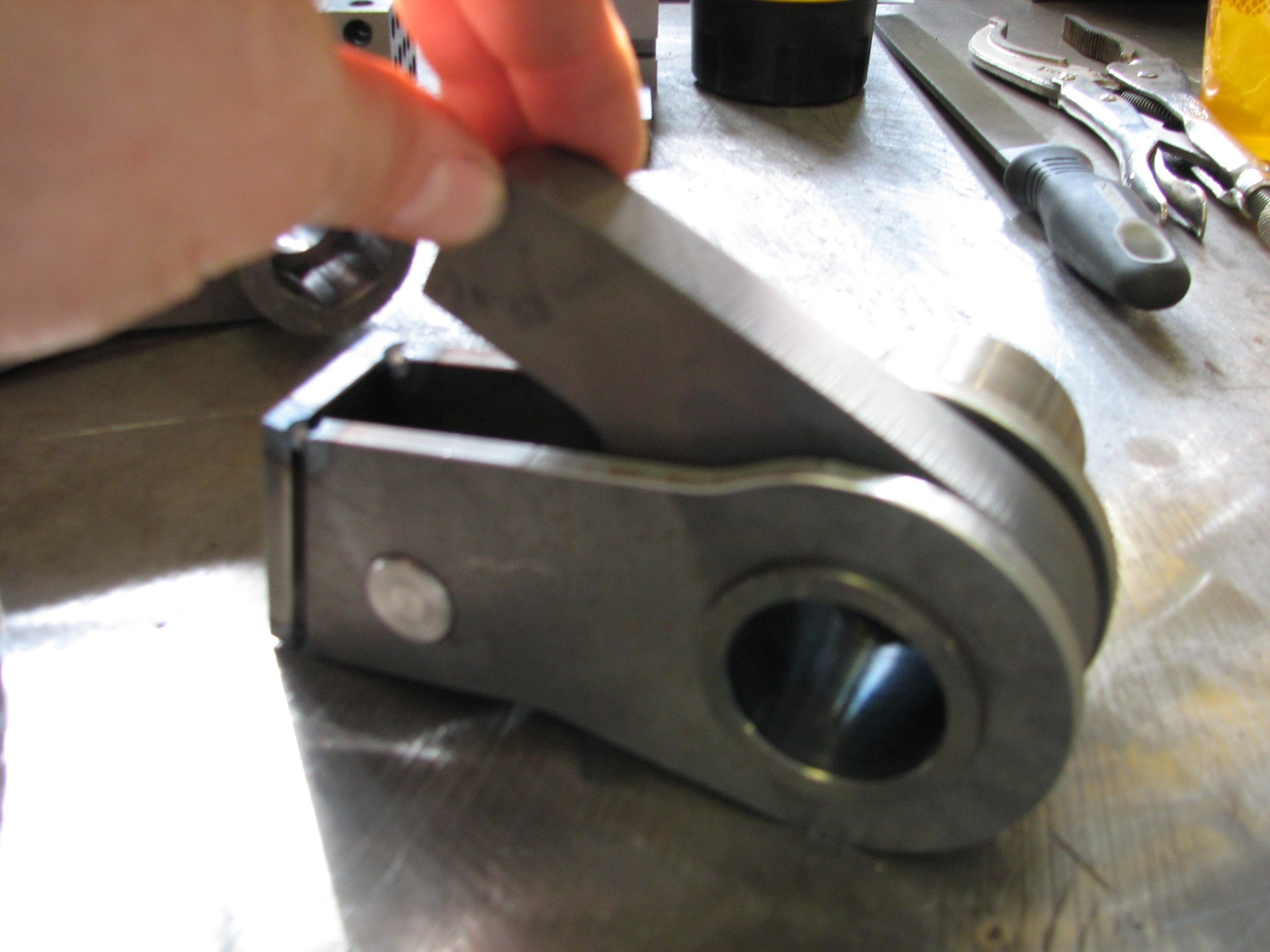

  • Fabricated steel clevis bracket with a bushing bore being fitted by hand

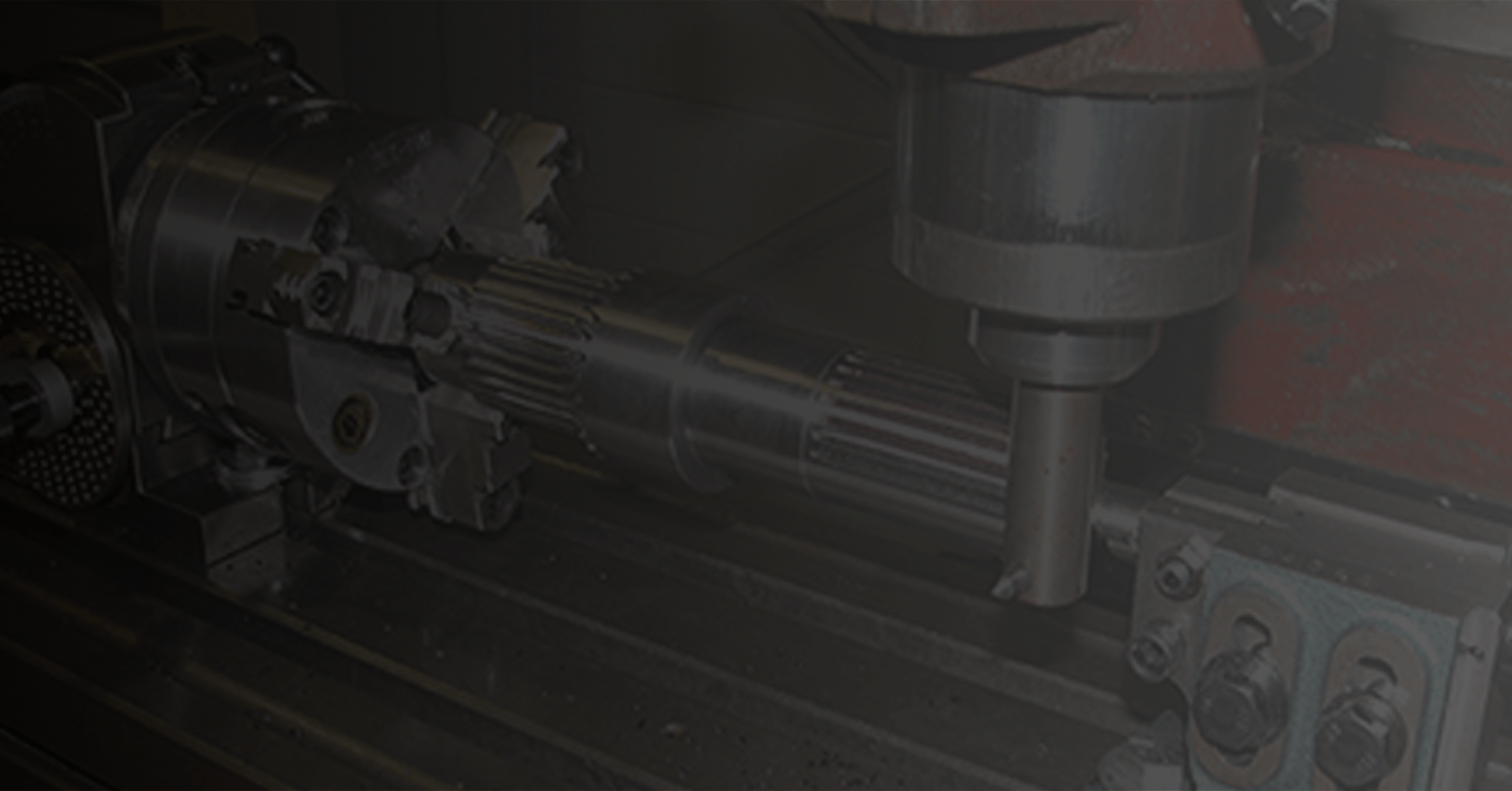

  • Rotary table, chuck and mill spindle in a darkened machine shop

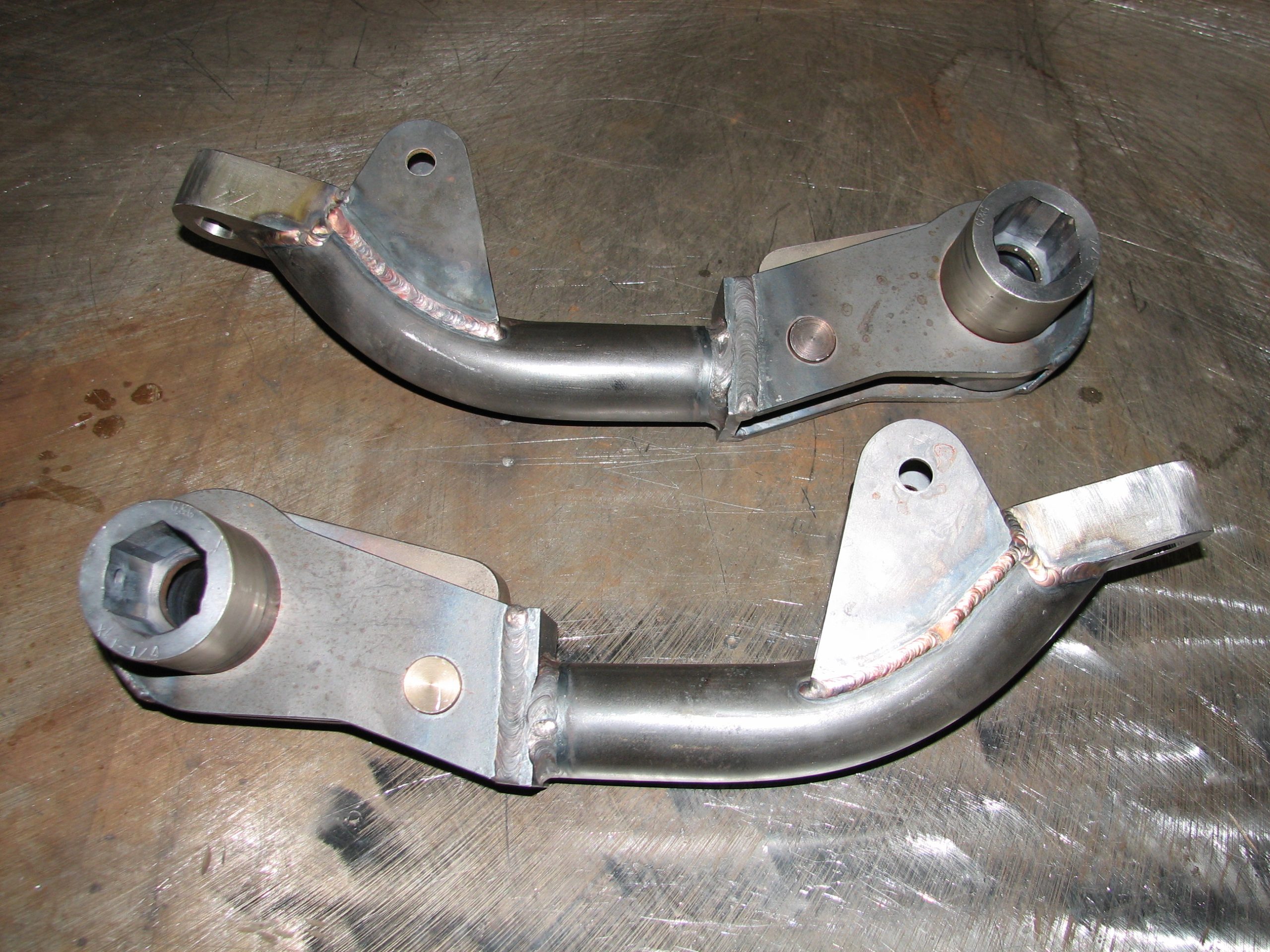

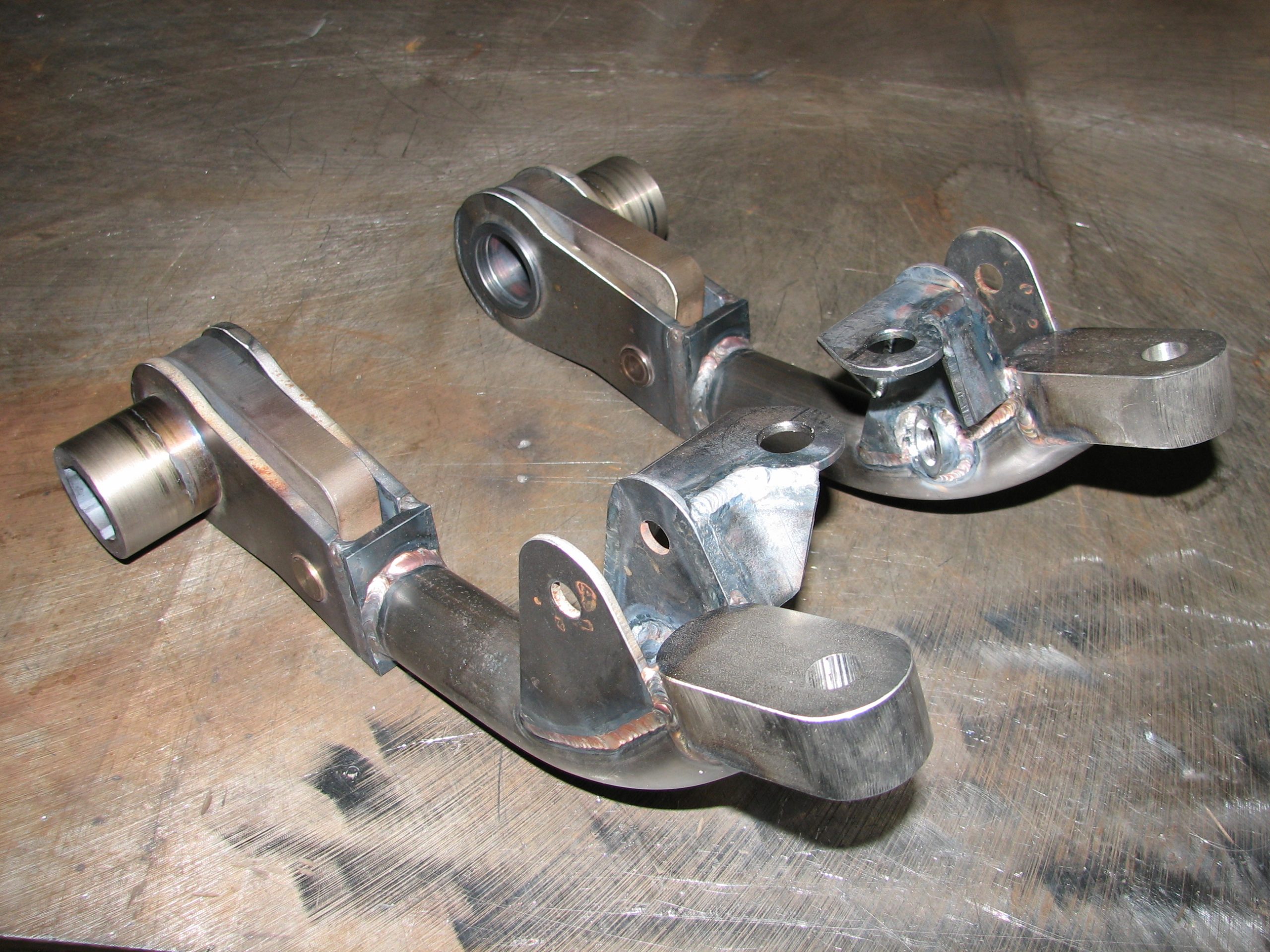

  • Two welded steel tube control arms with bushing housings

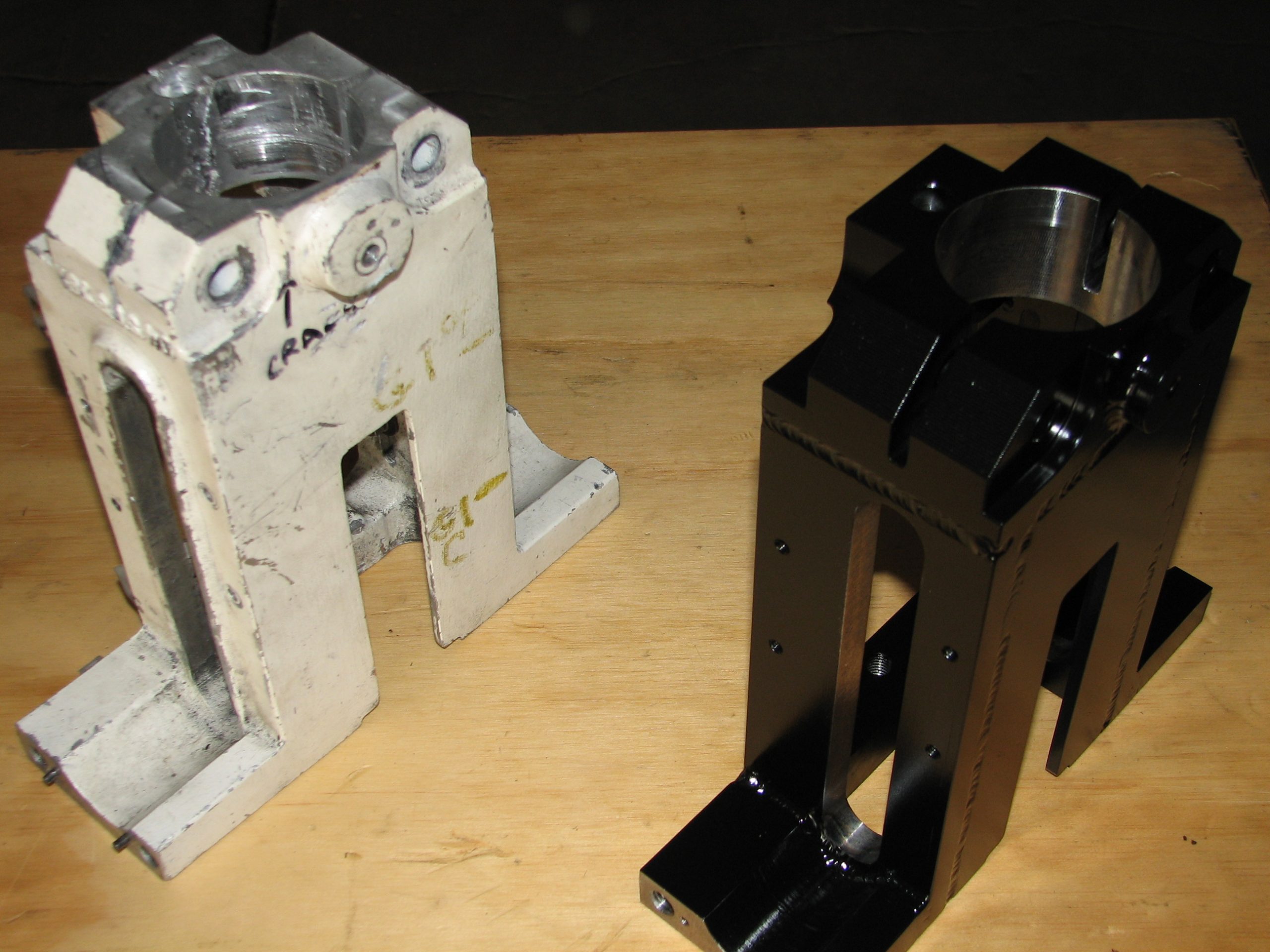

  • Worn original bearing block stand beside its new black machined replacement

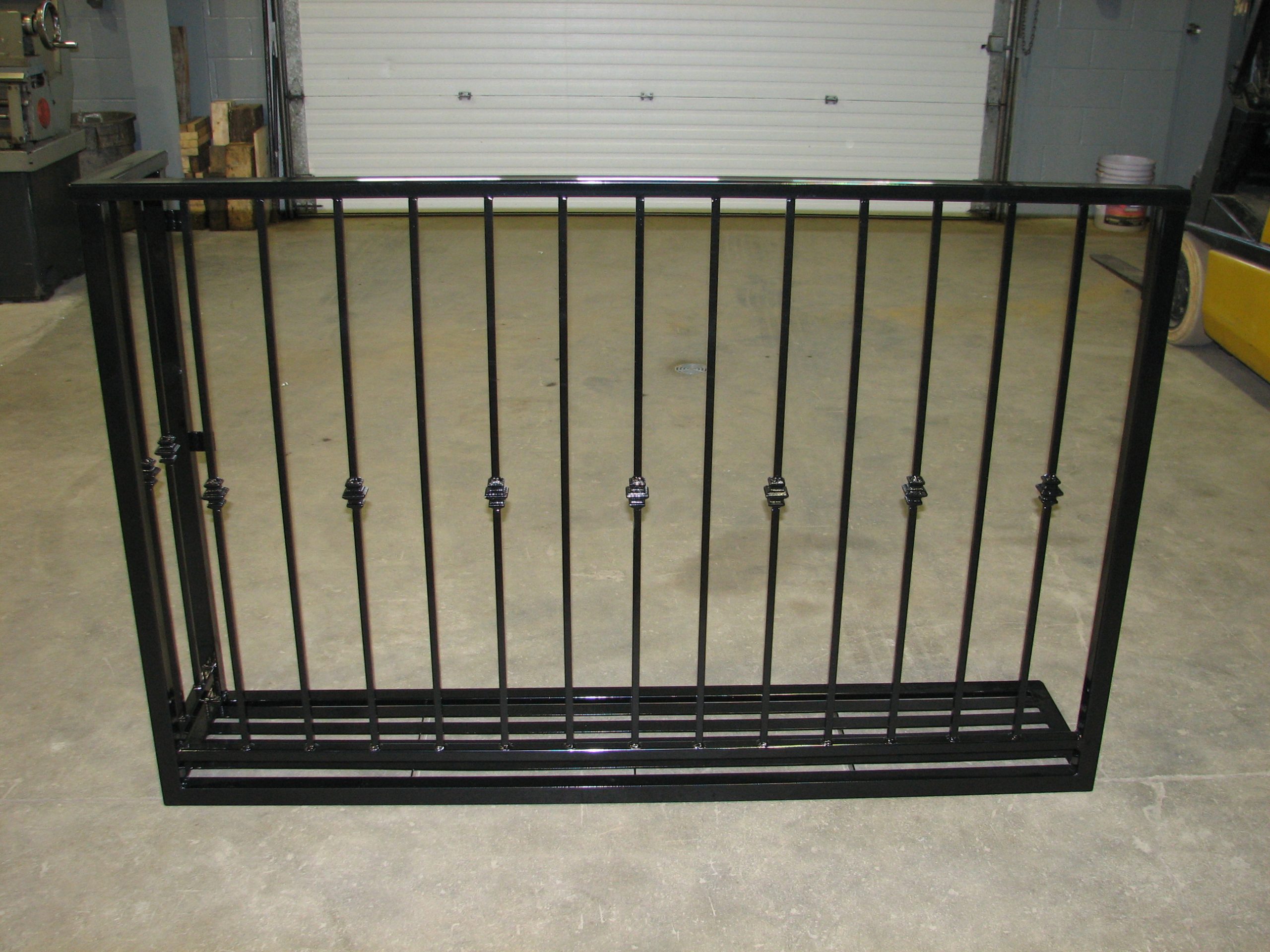

  • Black powder coated welded steel railing panel with balusters
  • Black welded steel guard cage frame mounted on a wall

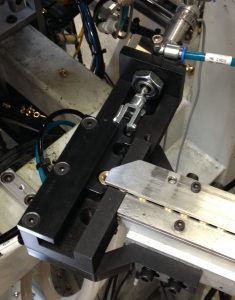

  • Brass insert escapement on an automated line with a pneumatic cylinder
  • Pneumatic part failsafe destroyer: cylinder driven drill on a black mount
  • Pneumatic part failsafe destroyer with drill bit and round aluminum plates

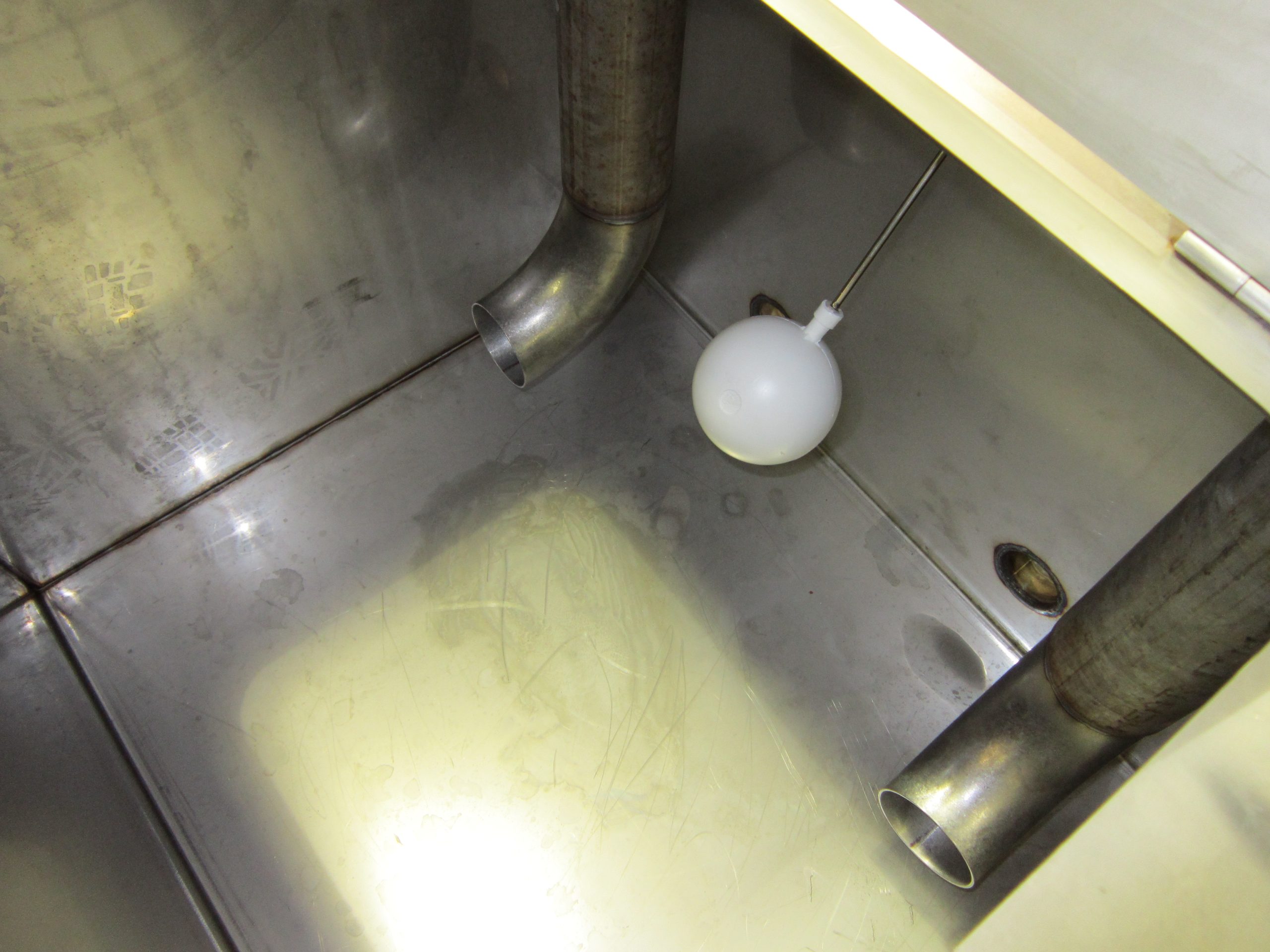

  • Inside a welded stainless steel tank with a float valve and pipe inlets

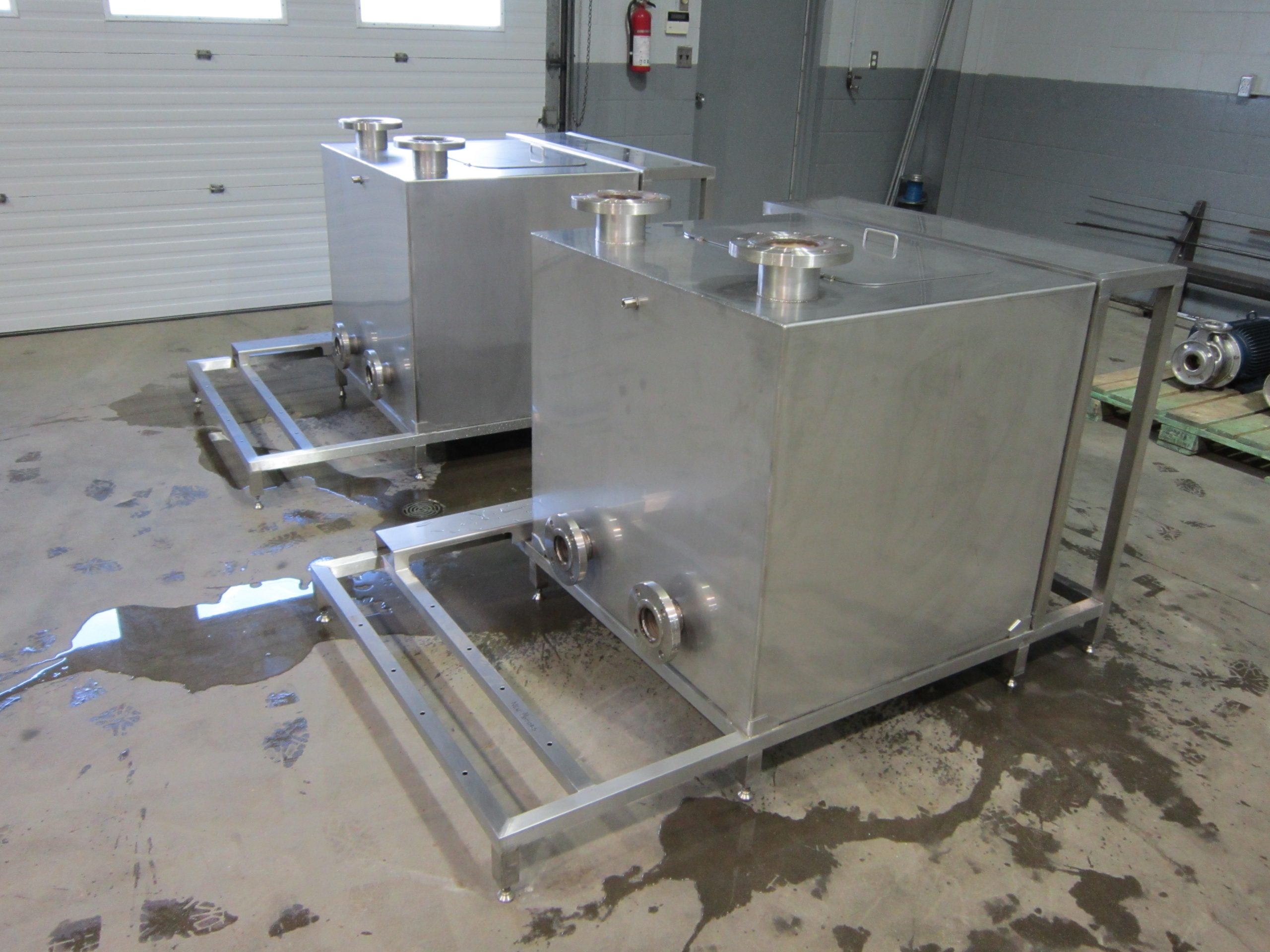

  • Two welded stainless steel tanks on stainless frames in the fabrication shop

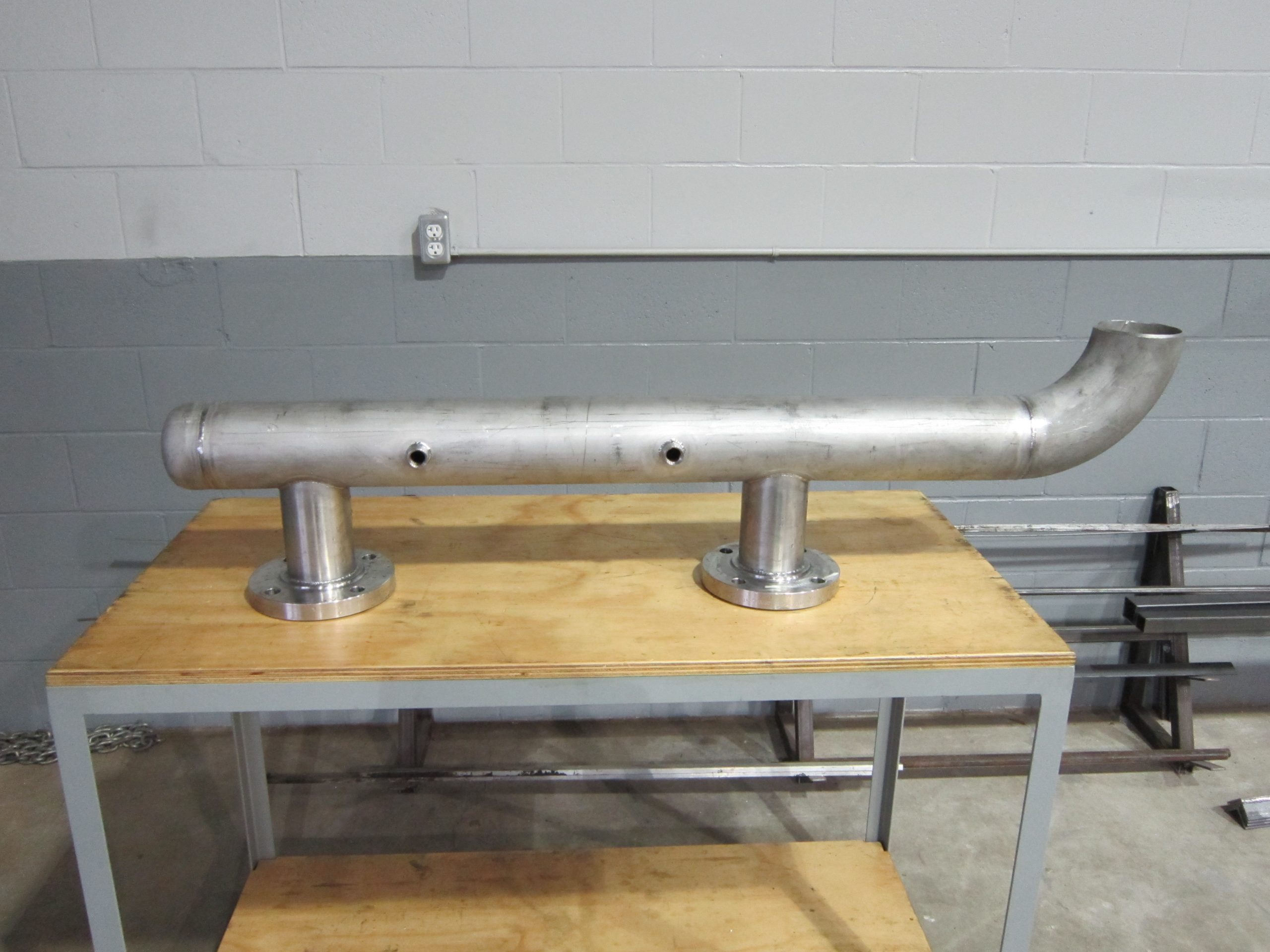

  • Fabricated stainless steel pipe manifold with flanged legs on a bench

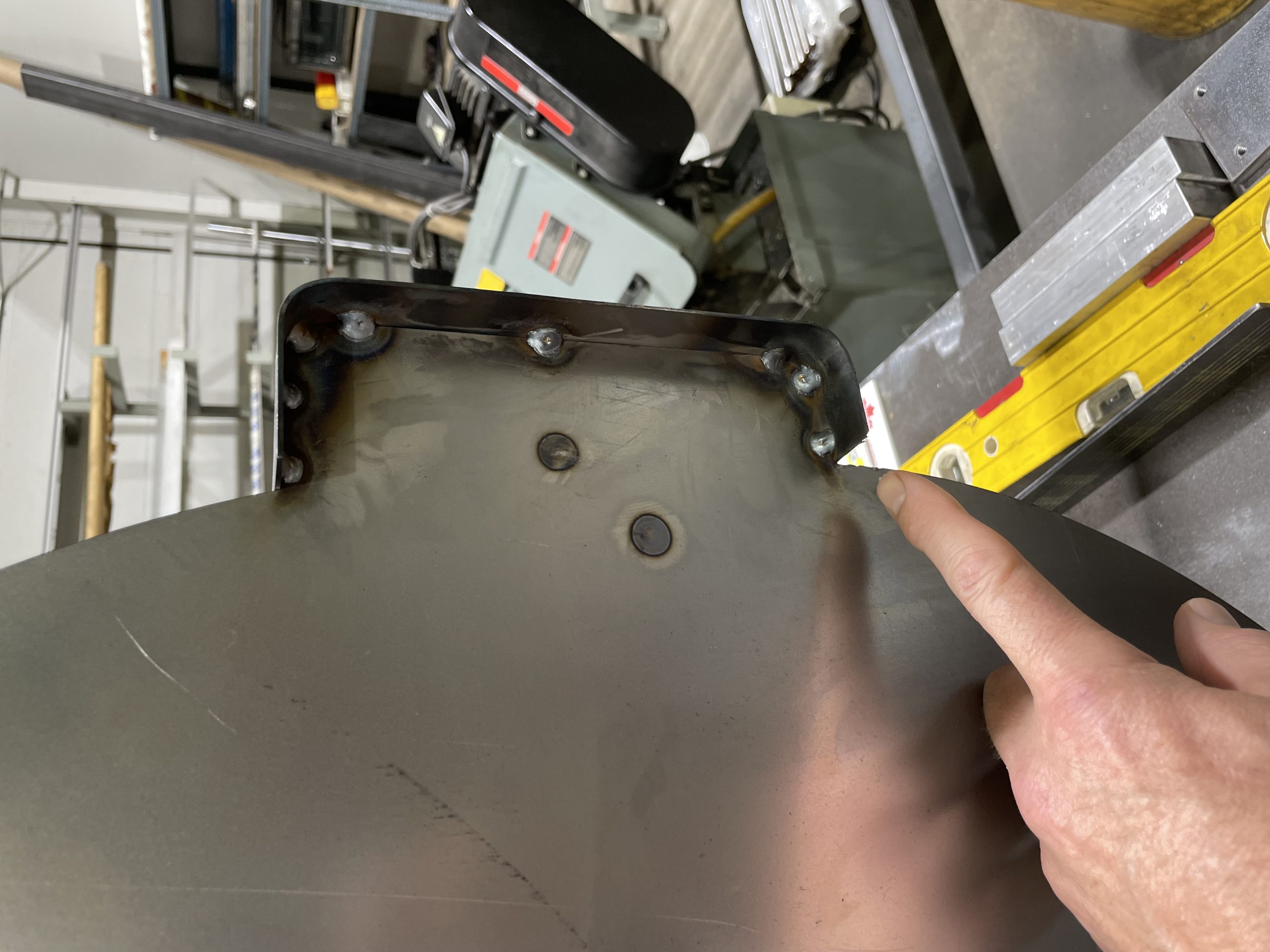

  • Checking the edge and bolt pattern of a welded steel plate in the shop
